JOST Dual Lifter

Key Features

  • JOST twist lock frame with front air lift and rear air lift
  • JOST bolster style locking system with guide rollers - QT 160-80 RVX
  • JOST front body stop meeting FMVSS front end protection requirements - ASW-160 HR
  • JOST air lift front HS-5000 EO-02
  • JOST air lift rear HS-5000 EO-02
  • JOST SSTN2HS actuating system with air tank package as required
  • Front lifting by JOST actuating system 650.200.000
  • JOST European standard locking/lift system with guide rollers
  • Center frame body supports hot rolled steel tube welded and reinforced with cross members
View Spec Sheet

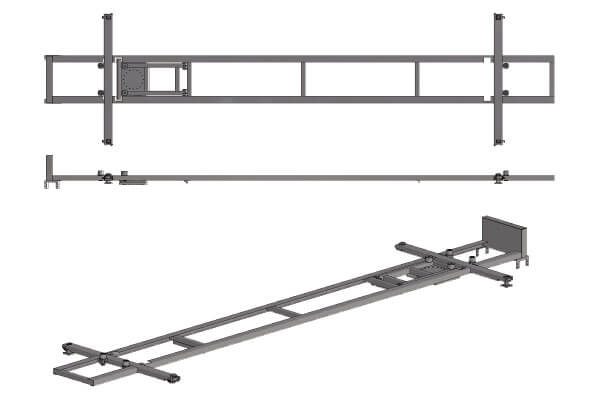

JOST Single Lifter

Key Features

  • JOST twist lock frame with front air lift and truck suspension lift at rear
  • JOST bolster style locking system with guide rollers- QT 160-80 RVX
  • JOST front body stop meeting FMVSS front end protection requirements - ASW-160 HR
  • JOST air lift front HS-5000 EO-02
  • JOST SSTN2HS actuating system with air tank package as required
  • Front lifting by JOST actuating system 650.200.000
  • Rear lifting by truck air suspension, pilot height control valve bypass and hand operated valve
  • JOST European standard locking/lift system with guide rollers
  • Center frame body supports hot rolled steel tube welded and reinforced with cross members
View Spec Sheet

Body Base Frame with Retractable Legs

We provide your truck bodybuilder with welded steel base frames with retractable legs. Manufactured by us, they’re robust enough to be freestanding alone or at a loading dock. Available in 12' to 28' lengths and widths up to 102".

Key Features

  • Crossmembers - 3” deep on 16” centers. Fabricated section is .125" hot rolled steel. End clips to match bodybuilder bottom rail.
  • Long Rails - Full length 3.5” deep. Fabricated section .125" hot rolled steel.
  • End Caps - Long rail end cap to contact locking system and synchronize locking.
  • Reinforcement - Reinforcement of long rail to crossmembers.
  • Leg Mounting - 2 leg mounting weldments, reinforced and welded to base frame. Includes JOST bearing and outer bearing for support strut.
  • Locking System - 4 JOST casting plates to match JOST twist lock on chassis.
  • Electrical Connection - 7-way electrical connection with sealed harness to container. Secured in place and in conduit where required.
  • Base Width - Built for 102” wide containers.
  • JOST Swap Body Legs.
  • Construction – Fully welded.
View Spec Sheet

JOST Container Leg

This steel leg is braced from front to rear to provide the added stability required for fork lift loading.
